Great Lakes eLearning is a convenient way to learn how to fabricate appliances at your own pace without the hassle and expense of travel. It is also a cost effective way to train any number of staff members for a fraction of the cost.
Ask a Question

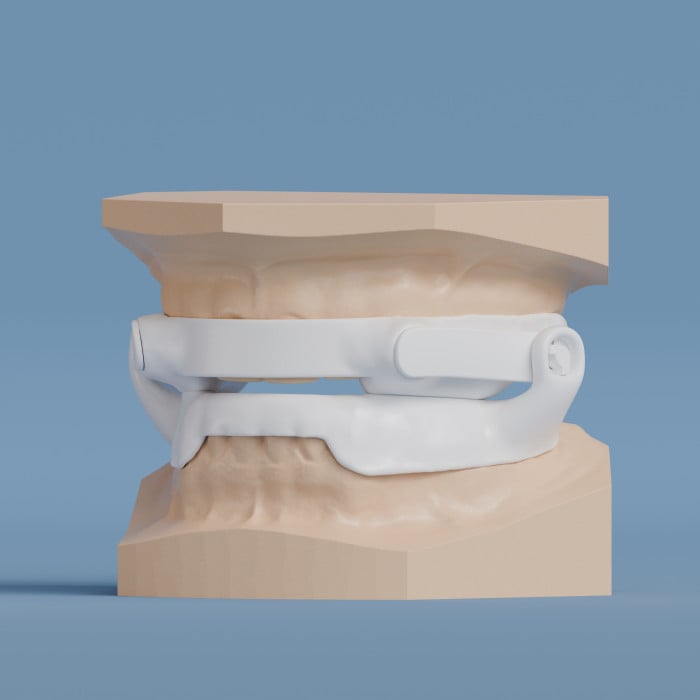

To view prices, please create an account. The photograph shows our standard design. We can customize many of our appliances for your patient's specific needs. Please see our auxiliaries, color chart, and list of commonly requested additions for more information.
One of the smallest, lightest and most durable sleep appliances on the market.
The Panthera D-SAD (Digital Sleep Apnea Device), is an FDA approved, effective treatment for snoring and obstructive sleep apnea. When worn at night, the D-SAD positions the lower jaw in a forward position, relieving snoring and mild to moderate sleep apnea conditions.
The fully CAD/CAM D-SAD is custom designed on a computer from optically scanned information, then 3D printed using the latest technology and materials. It is made from biocompatible polyamide medical grade nylon.
- It does not contain BPA, phthalate or resin.
Connecting rods are made of the same biocompatible polymer as the device. Unique rod connection points ensure that the device will not disengage during sleep, elongate or distort.
Rods range from 21-36mm and can be adjusted in 1mm increments.
- Can be special ordered in .5mm increments.
Please see the Downloads tab for additional doctor instructions.
|Turnaround Time||18 Business days|
|Indications||Snoring/Mild to Moderate OSA|
|Contraindications||Generalized Periodontitis, Insufficient Number of Teeth, Severe Osteoarthritis, TMJ, TMJ and Chronic Pain, Under 18 Years of Age|
|Material Type||Biocompatible Polyamide Medical Grade Nylon|
Mail Traditional Models
Step 1 - Download Prescription
Step 2 - Print a Shipping Label
Step 3 - Mail it in!
Upload Digital Models
Select your scanner to view easy instructions on how to submit a digital model.
Great Lakes also supports DDX, and Planmeca. If you need assistance, please contact us.
How it works
Instructions (12 video playlist)
Appliance SpecificIntraoral scans or models -
- Upper and Lower with palate
- 4-5mm extended beyond gingival margins
- See Rx for bite requirements
- Accurate impressions with any type of impression material are acceptable
- Impressions must adequately reflect all relevant anatomy
- Impression material must not be separating from the impression tray
- Consider pouring your models right away if your impressions are moisture, temperature, or time sensitive
- Impressions sensitive to moisture content should be wrapped in a damp paper towel and placed in a sealed plastic bag if models are not poured immediately
- Only metal impression trays and those with VPS impression material will be returned
- The nature of impression materials currently on the market may contribute to common model problems encountered in the laboratory. Have you encountered porosity (bubbles, voids) or poor surface quality? Plaster or stone mixes are water based and they interact with impression surfaces in a water-like manner. Liquids placed on solid surfaces will be either attracted to, or repelled from that surface in varying degrees. Please be aware when selecting impression material if it is hydrophilic or hydrophobic.
Hydrophilic: is attracted to, or can be wetted by water.
Hydrophobic: is when liquid is repelled or fails to bond with liquids.
Vinyl poly siloxane (VPS) options can be hydrophilic or hydrophobic. Alginate is hydrophilic.
- There are advantages and disadvantages to these impression options but there are products on the market to help reduce the disadvantages. Surfactants and debubblizer sprays can be used to lower surface tension between surfaces making the impression material more hydrophilic and assure a better impression result.
- Great Lakes carries ACU-flow™ a VPS impression material which is hydrophilic and requires NO surfactant spray for surface tension reduction, eliminating bubble formation. Surfactants must be used properly and excess surfactant should not be allowed to pool in the cusp tips. This can cause loose, sandy-like cusp tips. Excess surfactant needs to be blown out leaving a wet look only before pouring.
Learn how to take a reliable impression
- Plaster or stone models are acceptable. Generally, the durability of stone is preferred.
- Models should be reasonably trimmed, yet sufficiently thick for strength considerations.
- No horseshoe-shaped models; Models should have a base of at least 7mm in the thinnest area.
- Bases will be added as necessary (for an additional fee) to models without bases or those lacking adequate base thickness or strength.
- Please indicate if your model must be duplicated as work models may get damaged during the appliance fabrication process.
- Please package bite registrations carefully.
- Bite records must not be left between models for shipment to the lab.
- Dedicated packaging should be considered for brittle materials such as Delar wax.
- Please identify the nature and the intent of each bite record, if more than one is being supplied.
- Please consider mounting the maxillary model, before sending it to the lab, for those cases requiring mounting. Sending items such as facebows, bite forks, and mounting jigs through the mail often results in unreliable mountings.
We use the following articulators and their accessories in our laboratory:
- SAM® 1, SAM® 2, SAM® 3
- Whip Mix
- Stratos 200
Care InstructionsClean with approved dental cleaner provided with appliance.
- 3 Year
- Warranty voided with dental changes, damage outside of normal wear, abuse or misuse.
